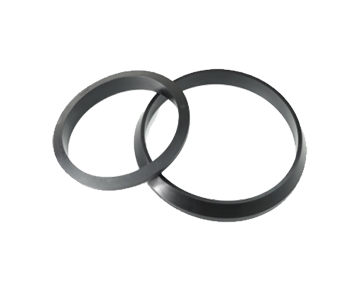

TYTON® Push-On gasket

TYTON® Push-On gasket used in Tyton® DI Push-On Joints are manufactured in dual hardness, flexible and resistant rubber, featuring stronger, sturdier and reliable seal from the radial compression. The unique design of Push on Gasket and premium quality with accurate dimensions also enables, quick and easy assembling of DI pipes and fittings in underground applications.

These joints work great in weak soils where concrete blocks do not work, and offers 3 to 5 degrees joint deflection, providing maximum security for strategic mains. Additionally, our gaskets can all be installed under wet-trench conditions or even underwater since, large bell holes are not required for this joint.

SKRI conforms the gaskets to numerous international standards and approvals from well-reputed third party laboratories.

Flange Gasket

Flange gasket can be used in HVAC petrochemical, oil and gas, pipelines, plumbing, electronic, chemical, medical, and food processing. It forms a great seal by filling the microscopic gaps and irregularities on the flange faces.
The corrugated faced flange is also available with consistent thickness and dimensional accuracy to provide an excellent seal.

Mechanical Gasket

Mechanical gasket-made in single polymer and for mechanical joint assembly which is labor-intensive but very simple and requires only one tool — an ordinary ratchet wrench.

Size: 80mm-1600mm for all three gaskets Elastomers: EPDM, SBR, NBR(Nitrile), FKM & Neoprene® or more
Standards
  • ISO 4633:2015/IS 5382:2018 Rubber seals - Joint rings for water supply, drainage and sewerage pipelines - Specification for materials
  • IS 12820 : 2004 Dimensional requirements of rubber gaskets for mechanical joints and push - On joints for use with cast iron pipes and fittings for carrying water, gas and sewage
  • IS 9523 : 2000 Ductile iron fittings for pressure pipes for water, gas and sewage - Specification
  • ISO 2531: 2009 Ductile iron pipes, fittings, accessories and their joints for water applications
  • ANSI/AWWA C111/A21.11 American National Standard For Rubber-gasket Joints For Ductile-iron Pressure Pipe And Fittings
  • ISO 3302-1:2014 Rubber — Tolerances for products — Part 1: Dimensional tolerances
  • ISO 2230:2002 Rubber products — Guidelines for storage
